Coleman Mach 15 Quiet Power Saver RV AC | 38209-0640 | 15K BTU

Coleman Mach 15 Quiet Power Saver RV AC | 38209-0640 | 15K BTU

$1,610.00 AUD
$1,641.00 AUD $1,610.00 AUD
Sale Sold out
Shipping calculated at checkout.

Upgrade your RV comfort with the Coleman Mach 15 Quiet Power Saver RV Air Conditioner (Part #38209-0640 / Legacy 38209-0660) in arctic white — 15,000 BTU cooling capacity with cutting-edge Power Saver EZ technology for low-amp compressor draw and quiet operation. R-32 refrigerant, 320 CFM airflow, fits any standard 14"×14" roof opening. Updated 2026 arctic white textured shroud design (direct replacement for legacy 38209-0660).

⭐ Mach 15 Power Saver EZ Technology — Standout Feature

Key differentiator vs the standard Mach 15: Power Saver EZ technology delivers meaningful energy efficiency:

  • Low amp compressor draw — cost-effective operation
  • 11.2A cooling load — significantly lower than standard 15K BTU units
  • Meaningful for RVs on 30-amp service or generator power — leaves more amperage for other appliances
  • Quiet operation — minimal noise disturbance without compromising performance

⭐ 2026 Production Change — Updated Shroud Design

Important production note: Coleman has implemented a running production change to the Mach 15 Power Saver rooftop AC line:

  • New model: 38209-0640 — features the updated 2026 arctic white textured shroud design
  • Legacy model: 38209-0660 — being phased out
  • Direct replacement: The 38209-0640 is the direct successor to the 38209-0660

Customers ordering either SKU may receive the new 38209-0640 due to the production change. The compatibility, cooling capacity, fitment, functionality, and performance specifications remain equivalent — the primary change is the updated exterior shroud styling.

Also Replaces R-410A Predecessor

Cross-references all these part numbers as the same air conditioner model:

  • 38209-0640 (current, updated 2026 shroud)
  • 38209-0660 (legacy)
  • 48209-0660 (R-410A predecessor)

⭐ 15,000 BTU Cooling — 320 CFM Airflow

  • 15,000 BTU cooling capacity — high-output cooling for large RVs, motorhomes, and demanding heat conditions
  • 320 CFM airflow — consistent, refreshing air movement throughout the RV
  • Large evaporator and condenser coils with raised lance fins — effective heat dissipation, enhanced cooling performance
  • Cool-only — no heat pump (for heat pump version, see standard Mach 15 38004-064/067)

R-32 Next-Generation Refrigerant

Uses R-32 refrigerant — the next-generation low-GWP refrigerant that replaces R-410A in current Coleman Mach production:

  • Approximately 70% lower global warming potential than R-410A
  • Zero ozone depletion potential
  • Improved energy efficiency in many operating conditions vs R-410A
  • Meets 2025 EPA AIM Act refrigerant requirements

Note: R-32 is classified as A2L (mildly flammable) — service must be performed by a qualified technician using appropriate equipment.

Need Heat Pump Instead?

This 38209-0640 is a cool-only Power Saver EZ variant. For heat pump-equipped Mach 15 options, see:

The heat pump variants provide year-round comfort — cooling AND supplemental electric heating — but do not include the Power Saver EZ low-amp technology.

⭐ Universal 14" × 14" Roof Opening Fitment

Fits any 14" × 14" RV roof opening — the industry-standard AC roof opening size. Easy replacement for most existing rooftop AC installations without cutting sheet metal.

Ducted OR Non-Ducted Installation

Versatile installation flexibility — works with both ducted AND non-ducted systems. Suits varied RV configurations and preferences.

⭐ Pre-Installed Roof Compression Gasket

All new replacement RV air conditioner units come with a pre-installed roof compression gasket on the base of the unit. Provides a proper seal between the AC and the RV roof — ensures a secure and leak-resistant installation. No additional sealant or roof gasket required for the rooftop AC unit.

⚠️ Ceiling Assembly Required — Sold Separately

The 38209-0640 is the upper (rooftop) unit only. A complete installation requires a compatible ceiling assembly (ducted or non-ducted, sold separately) based on your configuration.

Related Coleman Mach Air Conditioners

Other Coleman Mach models in the catalog:

Companion Ceiling Assembly

If you need a ceiling assembly for a ducted cool-only installation, see the Coleman Mach RV Ceiling Assembly 8430A633 — Cool-Only Lateral Ducted. Compatible with this cool-only Mach 15 Power Saver.

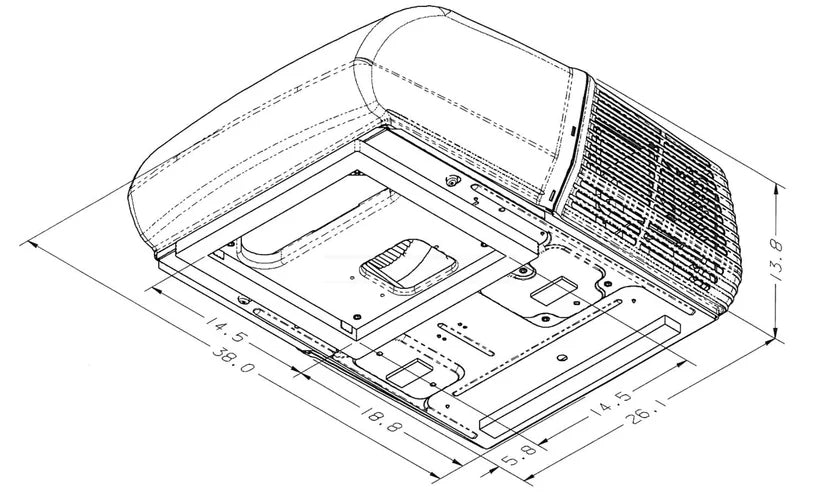

Size and Weight

  • Height: 13.8"
  • Width: 26.1"
  • Length: 38.0"

Electrical Specifications

  • Load Amps (Cooling): 11.2A
  • Load Amps (Heating): 15.6A

Cross-Reference Part Numbers

  • Current SKU: 38209-0640
  • UPC: 755790005864
  • Legacy SKU (being phased out): 38209-0660
  • R-410A Predecessor: 48209-0660

Arctic White Textured Finish

Updated 2026 arctic white textured shroud design.

⚠️ Professional Installation Required

Installation involves rooftop mounting, weather sealing, 115V AC electrical wiring, control network wiring, ceiling assembly integration, and thermostat integration. Installation should be performed by a qualified RV service technician.

2-Year Manufacturer Warranty

Send in warranty card after installation to activate.

Genuine Coleman Mach OEM

Key Features

  • Genuine Coleman Mach OEM Mach 15 Power Saver rooftop AC
  • Current SKU: 38209-0640 (2026 updated arctic white textured shroud)
  • Legacy SKU: 38209-0660 (being phased out — 38209-0640 ships as replacement)
  • R-410A predecessor: 48209-0660
  • UPC: 755790005864
  • 15,000 BTU cooling capacity
  • ⭐ Mach 15 Power Saver EZ technology — low-amp compressor draw for cost-effective operation
  • 320 CFM airflow
  • Large evaporator and condenser coils with raised lance fins
  • Quiet operation — minimal noise disturbance
  • R-32 next-generation refrigerant — 70% lower GWP vs R-410A
  • Cool-only — no heat pump (for heat pump versions see Mach 15 38004-064/067)
  • Fits any 14" × 14" roof opening
  • Ducted OR non-ducted installation
  • Pre-installed roof compression gasket — no additional sealant required
  • Ceiling assembly required — sold separately
  • Load Amps: 11.2A (cooling), 15.6A (heating)
  • Updated 2026 arctic white textured shroud design
  • Dimensions: 13.8"H × 26.1"W × 38.0"L
  • Backed by 2-year manufacturer warranty

Specifications

  • Brand: Coleman Mach / Airxcel
  • Series: Mach 15 Power Saver EZ (Quiet Power Saver)
  • Current Part Number: 38209-0640
  • UPC: 755790005864
  • Legacy Part Number: 38209-0660 (being phased out)
  • R-410A Predecessor: 48209-0660
  • Type: RV Rooftop Air Conditioner (Cool-Only, Low-Amp Power Saver)
  • Cooling Capacity: 15,000 BTU
  • Airflow: 320 CFM
  • Technology: Mach 15 Power Saver EZ (low-amp compressor draw)
  • Heat Pump: No (cool-only)
  • Refrigerant: R-32 (Low-GWP, A2L class)
  • Coils: Large evaporator and condenser coils with raised lance fins
  • Configuration: Ducted OR Non-Ducted
  • Load Amps (Cooling): 11.2A
  • Load Amps (Heating): 15.6A
  • Roof Opening Requirement: 14" × 14"
  • Height: 13.8"
  • Width: 26.1"
  • Length: 38.0"
  • Color/Finish: Arctic white textured (updated 2026 shroud design)
  • Roof Gasket: Pre-installed compression gasket included
  • Ceiling Assembly: Required, sold separately
  • Warranty: 2-year manufacturer warranty (send in warranty card after installation)
